Gintex Splash Protector 330 FR viscose wool fabric D3 E3 Molten Metal Splash FR Fabric, APC 1 and EN 1149-5

Availability:
Quantity:
Inquire Add to Basket

  • Splash Protector 330

  • GINTEX

Specification

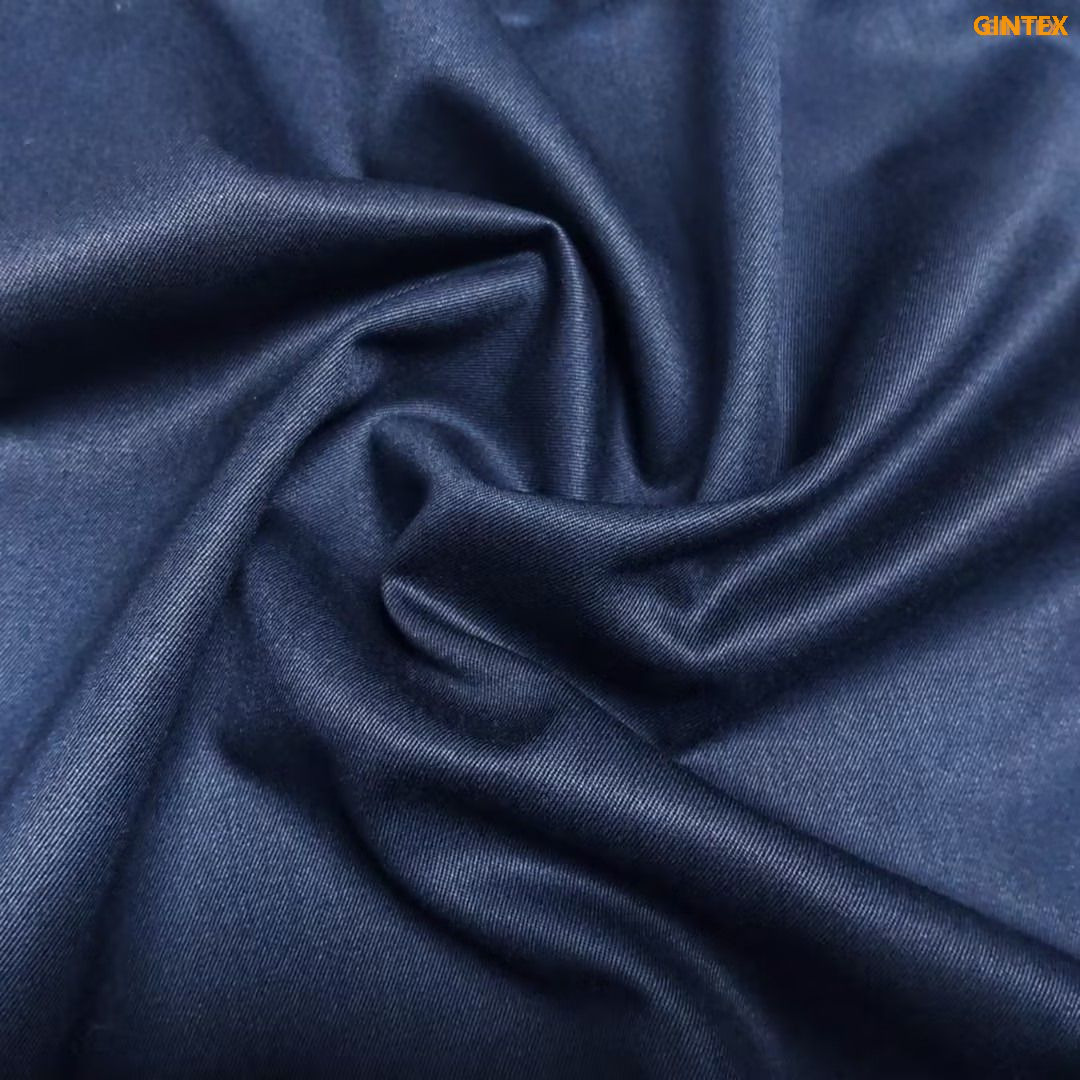

Gintex Splash Protector 330: Excellent Resistance to Molten Metal Splash & Welding Sparks


Fabric name: Gintex Splash Protector 330
Composition: FR Viscose / Wool / Nylon / Anti-static
Weight: 330 ± 5% gsm
Width: 150 ± 2 cm
Structure: Twill
Color: Navy blue, Royal blue, Fluorescent or OEM
Standards: EN ISO 11611, EN ISO 11612, EN 61482-2, EN 1149-5
Features: Meets D3 E3 (EN ISO 11612), Molten Metal Splash Resistant, Inherent FR, Durable, Breathable & Comfortable
Application: Welding, Foundry, Industrial Mining, Metallurgy, Electric Power, High-Risk Industrial Protection
Typical Garment: Jackets, Trousers, Coveralls
Overview
At 330 gsm, this twill fabric is made from FR viscose, wool, nylon and anti-static fibers. It is tested to EN ISO 11612 with D3 (molten aluminium) and E3 (molten iron) splash codes, and also meets EN ISO 11611 Class 1, EN 61482-2 (APC 1) and EN 1149-5.
Why It Works

Molten metal splash codes: EN ISO 11612 D3 and E3, the highest level for molten aluminium and molten iron splash.

FR fibers: FR viscose and wool, with nylon and anti-static fibers.

Abrasion resistance: over 20,000 cycles at 12 kPa.

Strength: tensile 810 N warp / 700 N weft, tear 31 N warp / 29 N weft.

Pilling resistance: grade 4 after 7000 cycles.

Dimensional stability: -2.1% warp / -2.8% weft after 5 × 60°C washes.

Anti-static: EN 1149-5 PASS.
