Gintex-HP38 Inherent FR Aramid Fabric, NFPA 2112, EN ISO 11611 and EN 1149-5

Availability:
Quantity:
Inquire Add to Basket

  • HP 38

  • GINTEX

Specification

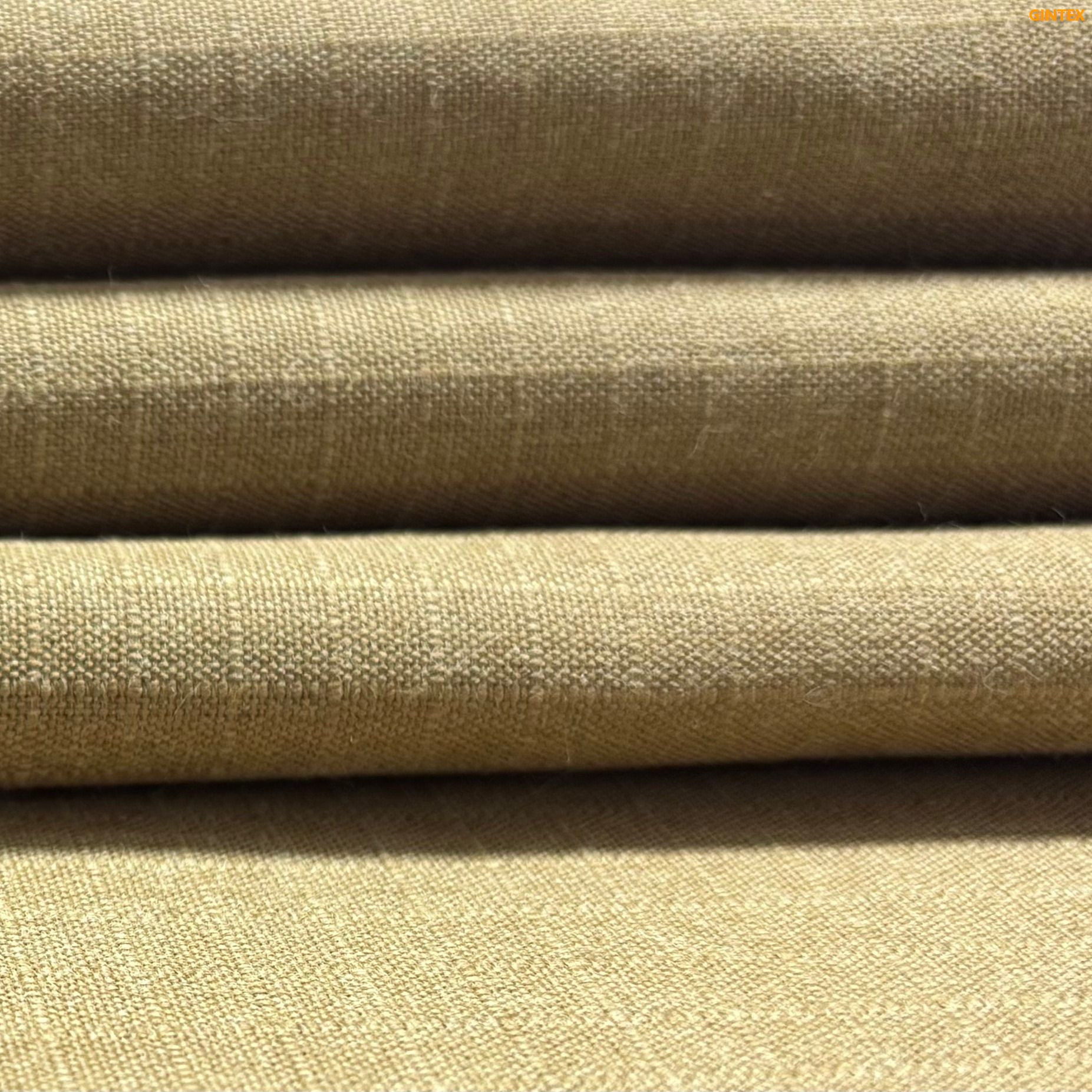

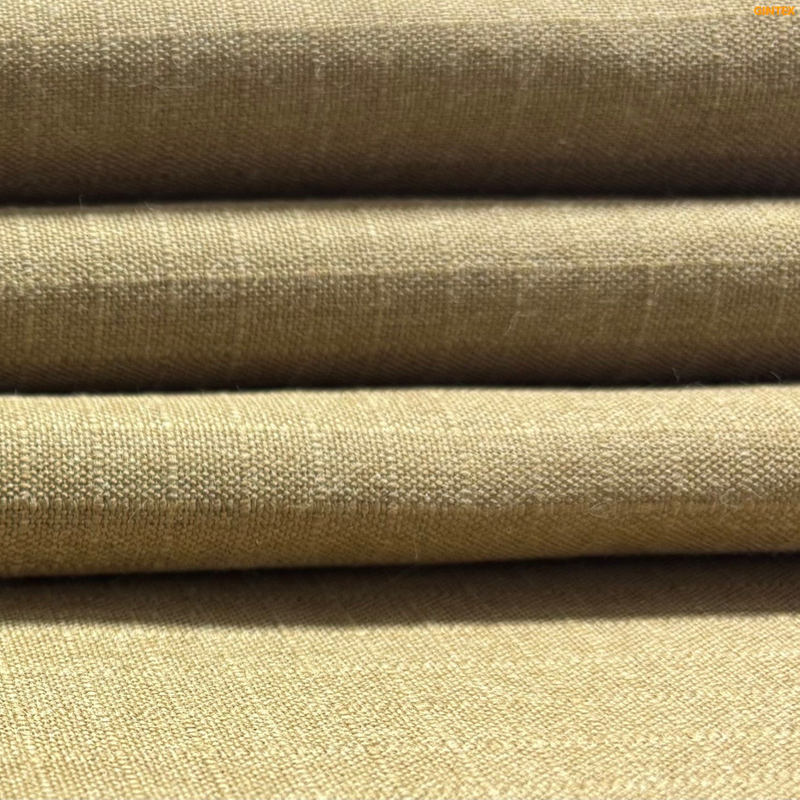

Gintex-HP38: Outstanding Inherent Flame Retardancy Offers Dependable Protection


Fabric name: Gintex-HP38
Composition: 38% Meta-aramid / 60% Para-aramid / 2% Anti-static
Weight: 200 ± 5% gsm
Width: 150 ± 2 cm
Structure: Ripstop
Finish: Chemical Liquid Resistant Treatment
Color: Navy blue, Royal blue, Fluorescent or OEM
Standards: EN ISO 11611, EN ISO 11612, NFPA 2112, EN 1149-5, ISO 6530
Features: Inherent FR, High Strength, Tear-resistant, Durable, Chemical Liquid Resistant Treatment
Application: Fire & Rescue Protection, Urban Rescue, Wildland, Forest and Other Fire Risk Environments
Typical Garment: Jackets, Trousers
Overview


At 200 gsm, this ripstop fabric is made from 38% meta-aramid, 60% para-aramid and 2% anti-static fibers, with a chemical liquid resistant treatment. It is tested to NFPA 2112 and ISO 6530, and also meets EN ISO 11611, EN ISO 11612 and EN 1149-5.
Why It Works

Flash fire: NFPA 2112 PASS.

Inherent FR fibers: 38% meta-aramid and 60% para-aramid, with 2% anti-static fibers (EN 1149-5 PASS).

Chemical liquid resistant treatment: ISO 6530 PASS.

Strength: tensile 1400 N warp / 1187 N weft, tear 75 N warp / 73 N weft.

Ripstop structure, abrasion resistance over 50,000 cycles at 12 kPa.

Dimensional stability: -1.1% warp / -1.5% weft after 5 × 60°C washes.

Pilling resistance: grade 4 after 5000 cycles.
