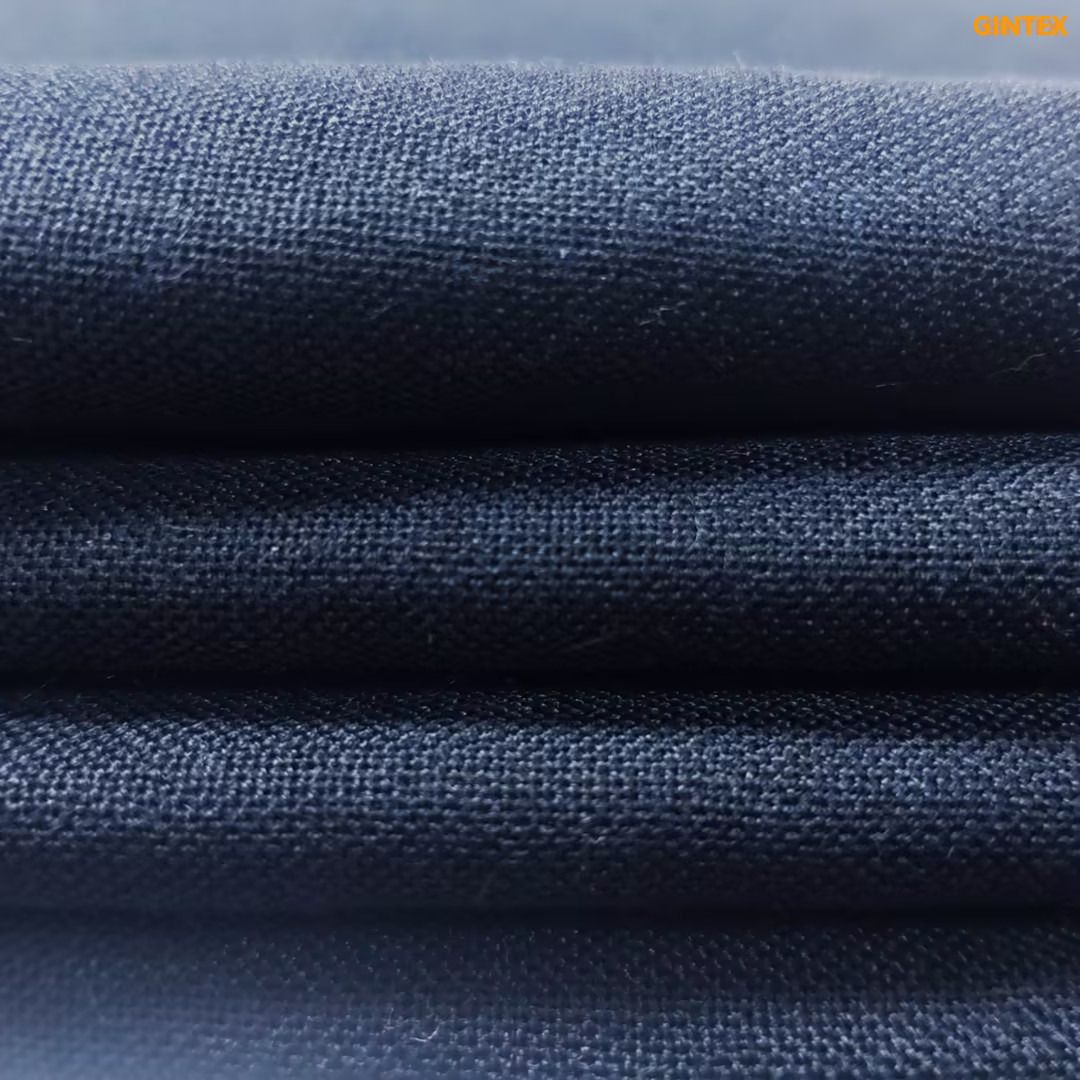

Gintex-A200 Inherent Aramid FR Fabric with ATPV 12 cal/cm² and NFPA 2112

Availability:

Quantity:



Inquire Add to Basket

Model:
A200 Double Layer
Brand:
GINTEX

Specification

Gintex-A200: Trusted Excellence in the Electrical Industry

Fabric name: Gintex-A200

Composition: 93% Meta-aramid / 5% Para-aramid / 2% Anti-static

Weight: 200 ± 5% gsm

Width: 150 ± 2 cm

Structure: Special Weave, Double Layer

Finish: Moisture Absorption and Sweat Releasing

Color: Navy blue, Royal blue, Fluorescent or OEM

Standards: EN ISO 11611, EN ISO 11612, NFPA 2112, ASTM F1959, ISO 61482-1-2, EN 1149-5 (1149-3)

Features: Lightweight, Durable, Superior Strength

Application: Power Plants, Electric Utility, Power Grid, Power Substations

Typical Garment: Jackets, Trousers

Overview

At 200 gsm, this double-layer, special-weave fabric is made from 93% meta-aramid, 5% para-aramid and 2% anti-static fibers, with a moisture-absorption and sweat-releasing finish. It is tested to ASTM F1959 (ATPV 12 cal/cm²), ISO 61482-1-2 (APC 1) and NFPA 2112, and also meets EN ISO 11611, EN ISO 11612 and EN 1149-5 (1149-3).

Why It Works



Arc protection: ATPV 12 cal/cm² (ASTM F1959) and APC 1 (ISO 61482-1-2).

Flash fire: NFPA 2112 PASS.

Inherent FR fibers: 93% meta-aramid and 5% para-aramid, with 2% anti-static fibers.

Double-layer construction: 200 gsm.

Strength: tensile 1379 N warp / 1165 N weft, tear 134 N warp / 130 N weft.

Abrasion resistance: over 50,000 cycles at 12 kPa.

Moisture-absorption and sweat-releasing finish.

Dimensional stability: -0.6% warp / -0.4% weft after 5 × 60°C washes.

Pilling resistance: grade 4 after 5000 cycles.

Technical Data Sheet

Certificates

Aramid FR Fabric meta-aramid fabric Double Layer FR Fabric arc rated fabric moisture wicking FR fabric
